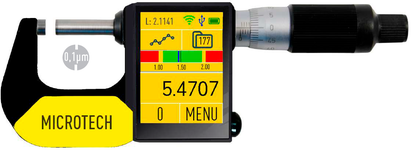

The Microtech Touch Screen Smart Micrometer features a high-precision measuring system with 0.1 micron resolution. The integrated touch screen module provides advanced measurement visualization, data management, and wireless connectivity for modern precision measurement applications.

Lead time: Ships in approximately 3-4 weeks (made to order)

Measurement Units – Inch or Metric (Selectable)

Resolution - .00001 inch (10 microinches) or 0.1 micron

Accuracy - +/- .00004 inch OR 1 micron (.001 mm)

Repeatability - +/- .00002 inch or 0.5 micron (.0005 mm)

Measurement Module Features
• Real-time graphical mode for live measurement visualization
• Color analog adjustable scale for intuitive readings
• Hub connection for external Microtech wireless device connectivity
• 2D connection capability for wireless connection and display on external devices
• Probe connection for wireless external indicator or lever indicator with automatic mode
• Internal memory storing up to 2000 measurements with folder organization and statistical functions
• Tolerance limits (Go / No-Go) with color indication
• Peak function for maximum and minimum measurement values
• Timer function
• Manual temperature compensation
• Linear compensation
• Measurement Units: Inch or Metric (selectable)
• Selectable resolution: 0.1 / 0.01 / 0.001 / 0.0001 mm (also selectable in inches)

• Ratcheting thimble delivers controlled, repeatable measurements
• Calibration date tracking
• Rechargeable Li-Pol battery with micro-USB charging port
• Wireless long-range data transfer to the Microtech MDS app for   Windows, Android, and iOS
• Wireless HID data transfer to any system or application (keyboard   mode) with configurable output
• USB HID data transfer to any system or application           (keyboard mode) with configurable output

All Microtech micrometers feature hand-finished measuring surfaces (Ra < 0.32) and undergo metrological inspection in an ISO 17025 ILAC-accredited laboratory.
