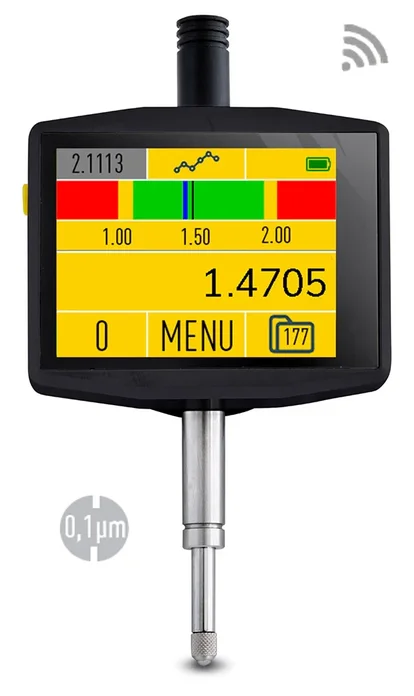

The Touch Screen Smart Indicator by Microtech features a touch screen smart measuring system with 0.1 micron resolution. They are designed for precision linear measurements.

Lead time: Ships in approximately 3-4 weeks (made to order)

Measurement Units: Inch or Metric (selectable)

Measuring Range
• 0–12.7 mm / 0.5 inch
• 0–25.4 mm / 1 inch
• 0–50.8 mm / 2 inch

Accuracy
• ±0.002 mm
Resolution
• 0.0001 mm or inch equivalent
• Measurement Units: Inch or Metric (selectable)

Measuring module includes:
• ON-line graphical mode
• Color analog adjustable scale
• HUB connection for external wireless device integration
• 2D device connection and indication via wireless
• Probe connection (external indicator or lever) with AUTO mode
• Quick reading system: 50 values/sec
• Internal memory for 2000 values with folder organization and statistics
• Limits (Go/NoGo) function with color indication
• Peak (Max/Min) function
• Timer
• Manual temperature compensation
• Linear compensation
• Calibration date control
• Rechargeable Li-Pol battery with micro-USB socket
• Wireless long-range data transfer to MDS app for Windows, Android, iOS (free versions)
• Wireless HID data transfer to any system/app (keyboard mode) with configurable options
• USB HID data transfer to any system/app (keyboard mode) with configurable options

All touch screen smart indicators pass metrological control in an ISO 17025 ILAC-accredited laboratory using an automated calibration stand.
